Características avançadas

• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 2,048 byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Store and-Forward switching method
• Auto-negotiation for each port
• EEE compliant IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3az EEE
• IEEE 802.3x flow control

Taxas de transferência de dados

• Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)

Filtragem de Pacotes / Taxas de Encaminhamento

• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

RAM Buffer

• 96 KB per device

Velocidade Ethernet

• Fast Ethernet

Capacidade Switch

• 1,6 Gbps

Alimentação Elétrica

• Entrada: 100-240V
• Saída: 5V / 0.55A

Dimenções

• 131 x 54 x 21 mm (5.16 x 2.13 x 0.83 inches)

Peso

• 74.8 gramas

Certificados

• CE Class B
• CE (LVD 2006/95/EC)

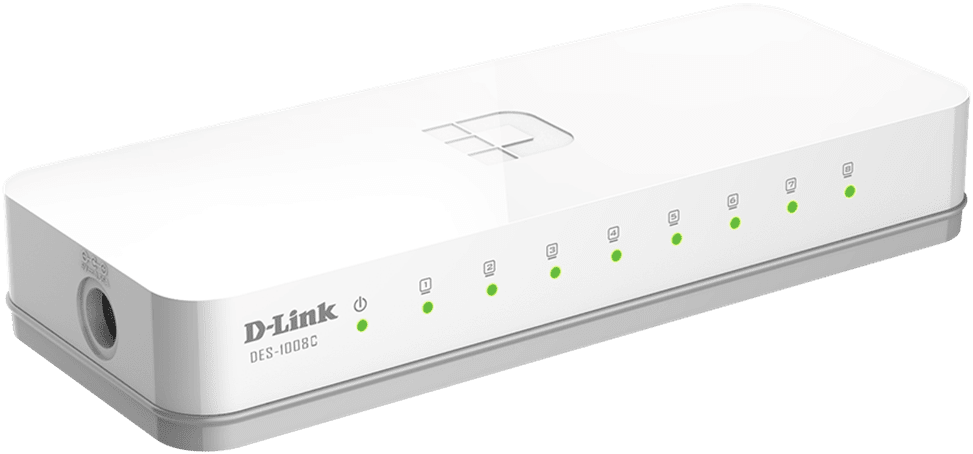

DES-1008C

• 8-Port 10/100 Mbps Unmanaged Switch
